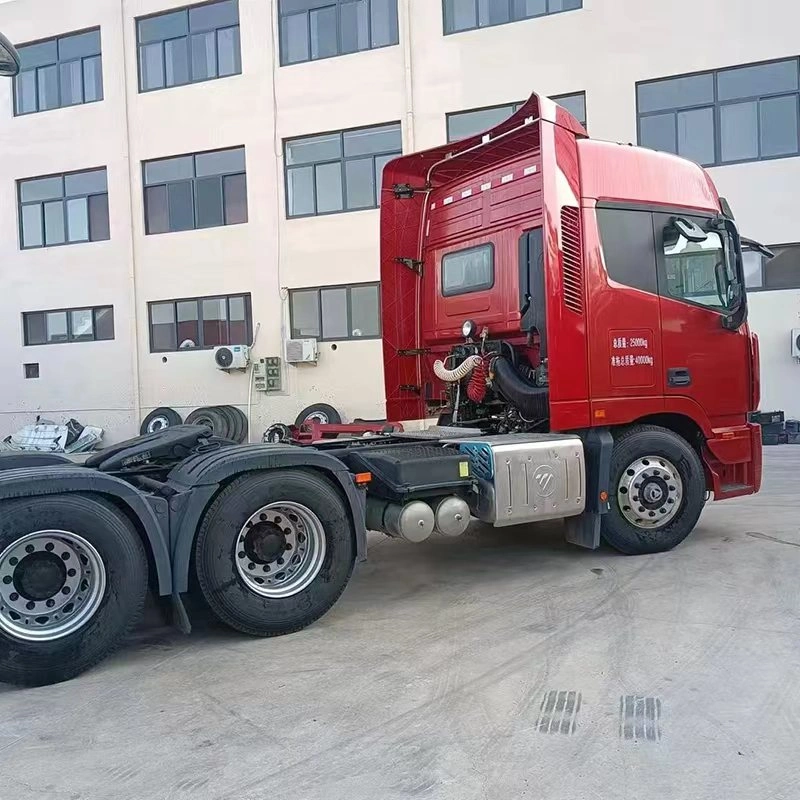

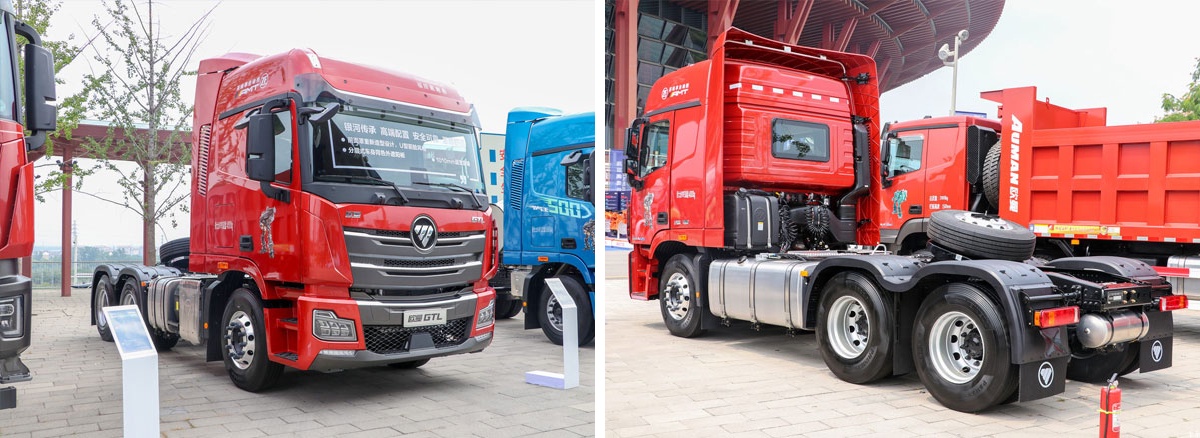

The base model of the Foton AUMAN GTL Supreme Edition with 580 horsepower is a high-end heavy-duty truck specifically designed for the efficient logistics transportation market. This vehicle is equipped with a 580-horsepower high-power engine, a 6X4 drive system, and an AMT automatic transmission, achieving a perfect balance of power, economy, and driving comfort. As the flagship model of the AUMAN GTL series, it integrates the technical advantages of the cooperation between Foton AUMAN and Daimler, and is a modern transportation tool specifically designed for long-distance trunk line logistics.

Core Feature

Power system

• Engine: Equipped with Foton Cummins X13 series engine, with a maximum power of 580 horsepower and a maximum torque of 2600 N·m.

• Transmission: ZF TraXon AMT automatic transmission, with a 12-speed design.

• Rear axle: The gear ratio can be selected from 2.714/2.846/3.083, and it is equipped with a hydraulic retarder.

• Shift mode: Offers three options: economy mode, power mode and manual mode.

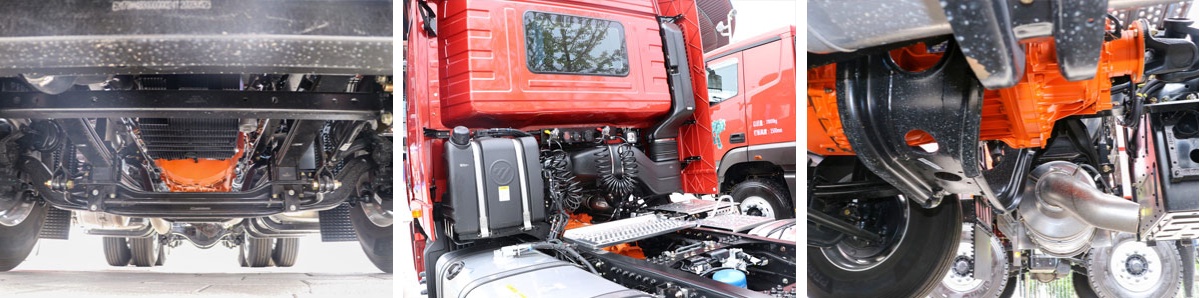

Chassis configuration

• Drive type: 6×4 all-wheel drive

• Wheelbase: 3300 + 1350 mm

• Fuel tank capacity: Dual fuel tank design, with a total capacity of over 1000 liters.

• Suspension system: 2 front and 4 rear leaf springs, designed to balance load-bearing capacity and comfort.

Manufacturing process and material selection

Manufacturing process

Cab manufacturing process: Adopting the four major standard processes of German Daimler (pressing, welding, painting, and assembly)

Cathodic electrophoretic coating: Full vehicle body cathodic electrophoretic treatment, with corrosion resistance exceeding 1000 hours.

Robot welding: The key parts are welded automatically by robots to ensure structural strength.

Sealing process: The sealing strips in the driver's cabin adopt a three-layer sealing design, with excellent waterproof and dustproof performance.

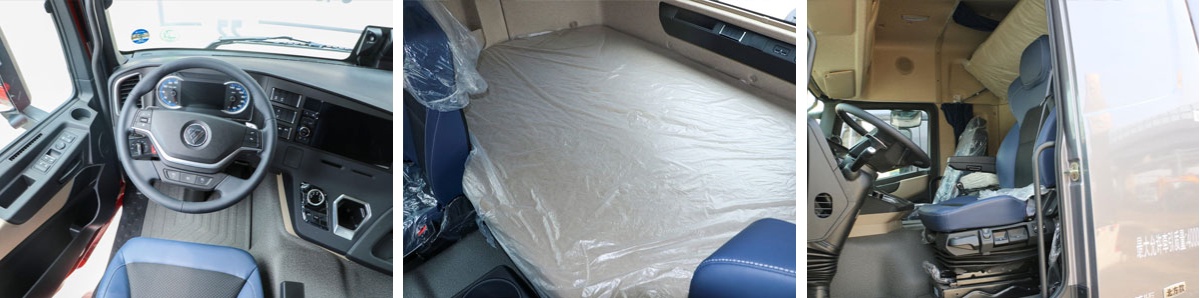

Material and Construction

Body material: The proportion of high-strength steel reaches 30%, and 780MPa high-strength steel is used in key areas.

Interior materials: Environmentally friendly flame-retardant materials, in compliance with EU environmental standards.

Seat material: A blend of high-quality breathable fabric and leather

Window glass: Panoramic laminated front windshield, with excellent heat insulation and soundproofing properties
