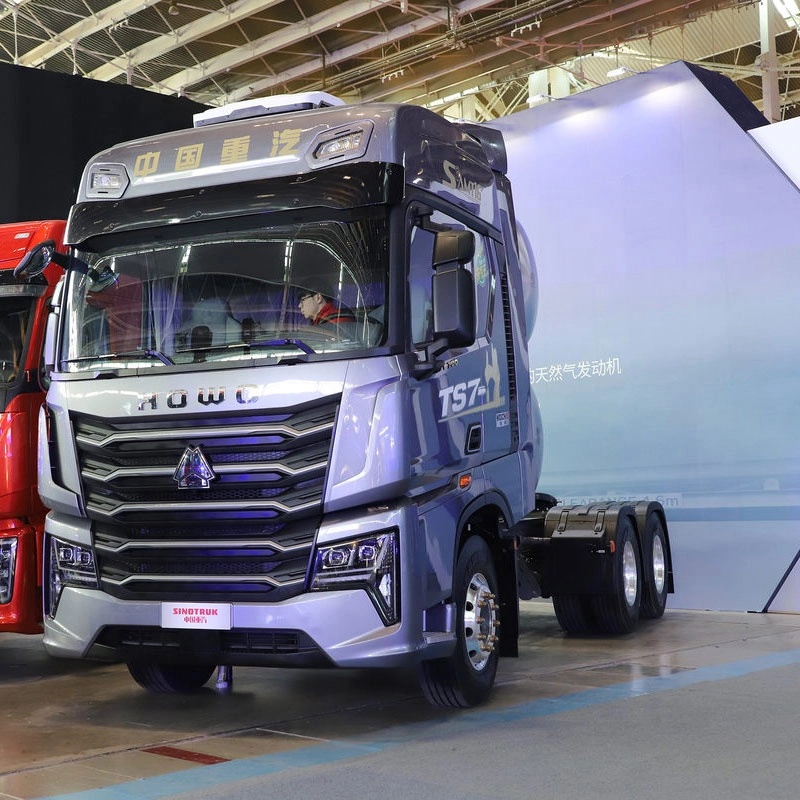

Sinotruk HOWO TS7 Heavy-Duty Truck 6X4

Sinotruk HOWO TS7 Heavy-Duty Truck 6X4
Maximum horsepower:590 HP
Drive type:6X4
Maximum speed:89km/h
Engine:Weichai WP15NG590E61

What information should you let me know if I want to get a quote?

Please let us know your purpose, road condition, type of cargo, tons of your cargo, size of trailer, quantity, etc.

You provide the information, more accurate model and price.

What can you buy from us?

Dump trailer, flatbed trailer, full trailer, rail-plate trailer, grille trailer, container trailer, tank trailer, vehicle transporter, van trailer, all kinds of special vehicles, dump truck, tractor-trailers, semi-trailers, self-tilting trucks, trailer parts,Electric Cargo tricycle etc.

How to control quality?

We set up all process inspection and quality control standard, include raw materials, production process, finished products.Advanced equipment and standard inspection process ensure the quality.

contact us
Consult Now
产品描述
Sinotruk HOWO TS7 Heavy-Duty Truck, 590 HP, 6X4 LNG Automatic Transmission Tractor (with Hydraulic Retarder)
Announcement Model:ZZ4257V424KF1LT
Drive type:6X4
Wheelbase:3825+1350mm
Engine:Weichai WP15NG590E61
Transmission:Faist F16JZ26A
Rear axle ratio:2.85
Vehicle body length:7.615 meters
Vehicle body width:2.53 meters
Vehicle body height:3.98 meters
Front wheel spacing:2022mm
Rear wheel spacing:1830/1830mm
Overall vehicle weight:8.8 tons
Total mass:25 tons
Total traction mass:40 tons
Maximum speed:89km/h
Place of Origin:Shandong Province, Jinan City
Tonnage level:Heavy-duty truck
Energy type:Liquefied Natural Gas (LNG)


1761123658687773

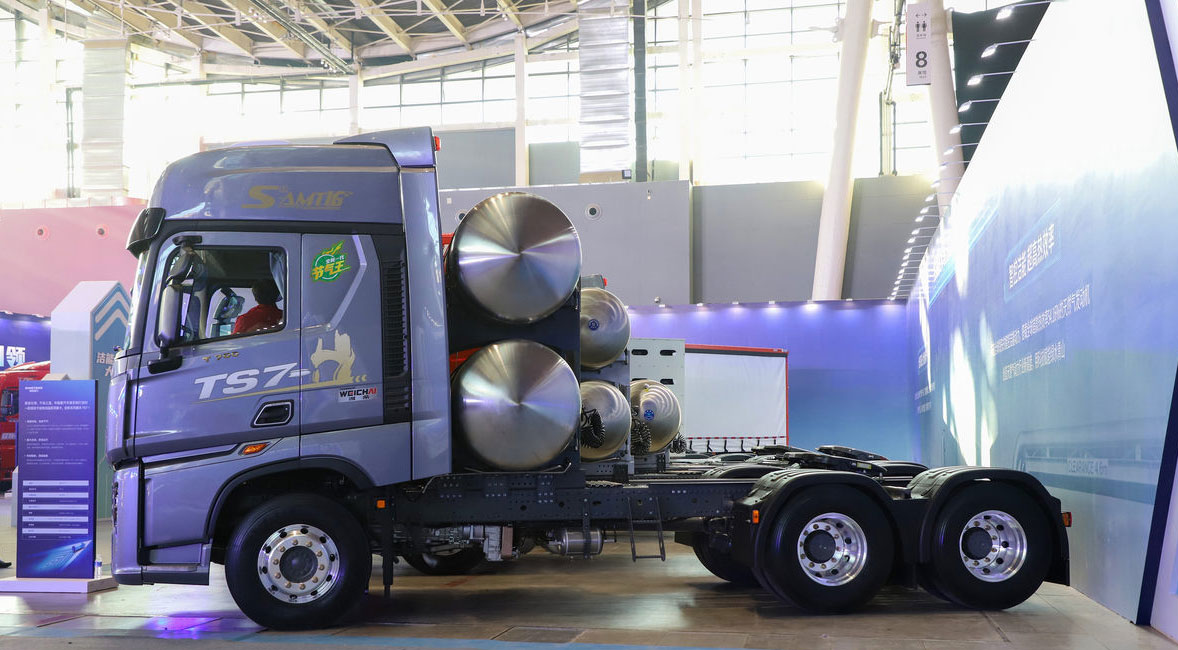

In terms of engine, the car is equipped with the Weichai WP17NG700E60 gas engine, which has a displacement of 16.6L, a maximum power output of 700 horsepower, and a maximum output torque of 3200 Newton meters. This is the Weichai WP17NG gas engine. The engine adopts technologies such as crankshaft offset structure, precise exhaust EGR measurement system, and full flow oil thermostat, combined with energy-saving technologies such as integrated matching of the vehicle power chain, vehicle integration, vehicle thermal management, intelligent gear shift control, and comprehensive evaluation of driving habits, laying a solid foundation for the vehicle's power performance, fuel economy, and reliability.

Engine parameters
Engine model:Weichai WP15NG590E61
Engine brand:Weichai
Number of cylinders:Six-cylinder
Fuel type:Liquefied Natural Gas (LNG)
Cylinder arrangement:Straight-line
Displacement:14.6 liters
Emission standards:National VI
Maximum horsepower:590 HP
Maximum output power:434kW
Rated rotational speed:1800rpm
Chassis parameters
Description of the rear axle:
Front axle allowable load:7000kg
Load capacity of the rear axle:18,000 (two-axle group) kilograms
Speed ratio:2.85
Number of spring blades:2/-/-


1761123567348274

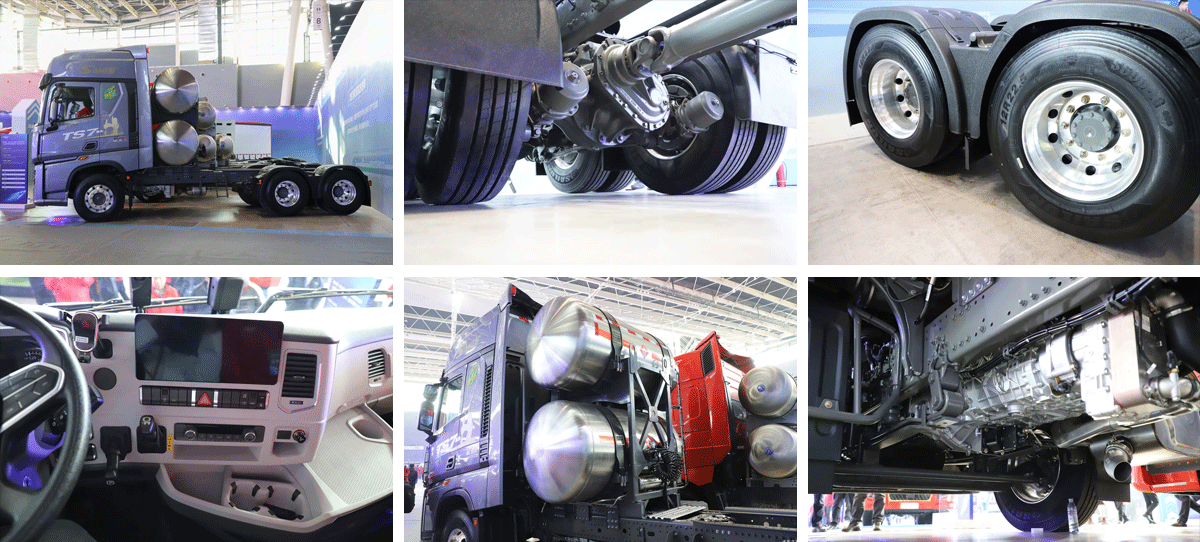

This car is equipped with two 1350 liter LNG storage tanks above the frame, with a total capacity of 2700 liters and a maximum filling capacity of around 1100 kilograms. Based on daily operating experience, it can provide a range of approximately 3000 kilometers
